Anti-ATG5 Antibody

筛选器： All WB IHC ICC/IF FCM

•

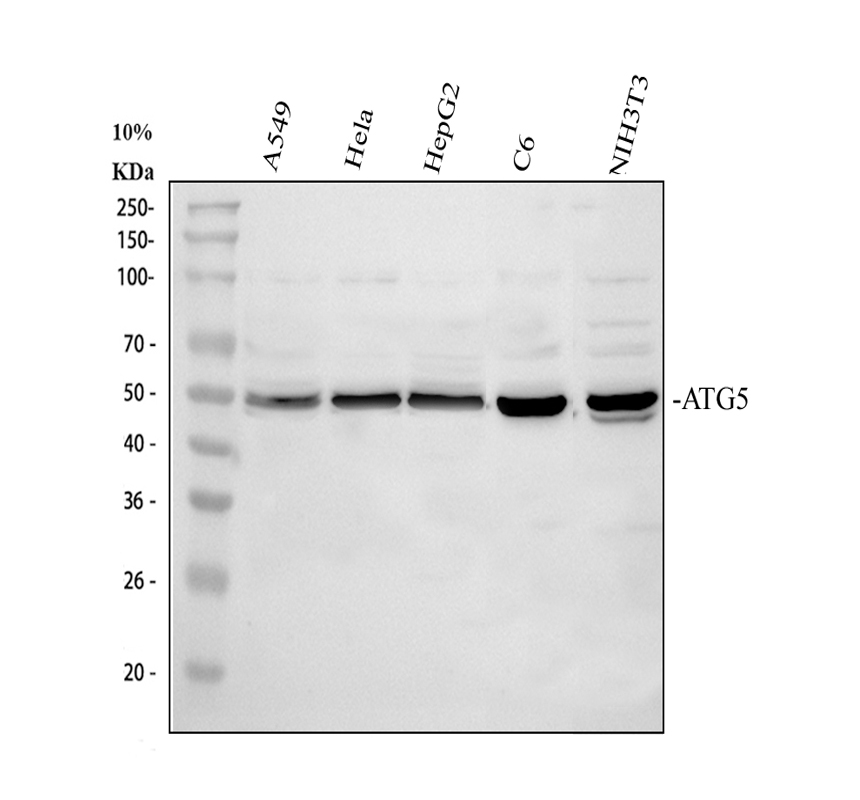

  Western blot analysis of ATG5 using anti-ATG5 antibody (BA3525-2). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
  Lane 1: human A549 whole cell lysates,
  Lane 2: human Hela whole cell lysates,
  Lane 3: human HepG2 whole cell lysates,
  Lane 4: rat C6 whole cell lysates,
  Lane 5: mouse NIH/3T3 whole cell lysates.
  \After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ATG5 antigA03957-Aen affinity purified polyclonal antibody (BA3525-2) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ATG5 at approximately 50-55 kDa. The expected band size for ATG5 is at 32 kDa.

•

  IHC analysis of ATG5 using anti-ATG5 antibody (BA3525-2).
  ATG5 was detected in a paraffin-embedded section of human ovarian cancer tissue. The tissue section was incubated with rabbit anti-ATG5 Antibody (BA3525-2) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

•

  ICC/IF analysis of ATG5 using anti-ATG5 antibody (BA3525-2).
  ATG5 was detected in an immunocytochemical section of A549 cells. The section was incubated with rabbit anti-ATG5 Antibody (BA3525-2) at a dilution of 1:100. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

•

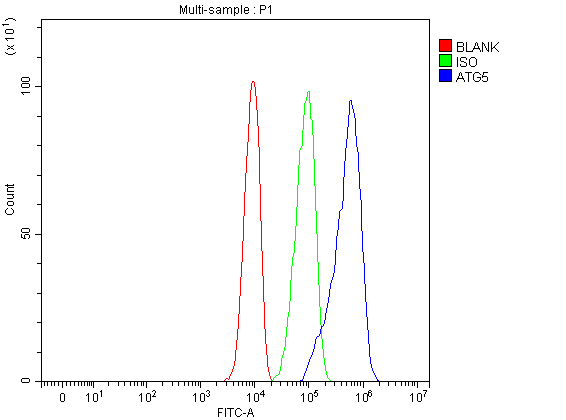

  Flow Cytometry analysis of HepG2 cells using anti-ATG5 antibody (BA3525-2).
  Overlay histogram showing HepG2 cells stained with BA3525-2 (Blue line). To facilitate intrMyelin basic protein/MBPllular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ATG5 Antibody (BA3525-2) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

•

  Western blot analysis of ATG5 using anti-ATG5 antibody (BA3525-2). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
  Lane 1: human A549 whole cell lysates,
  Lane 2: human Hela whole cell lysates,
  Lane 3: human HepG2 whole cell lysates,
  Lane 4: rat C6 whole cell lysates,
  Lane 5: mouse NIH/3T3 whole cell lysates.
  \After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ATG5 antigA03957-Aen affinity purified polyclonal antibody (BA3525-2) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ATG5 at approximately 50-55 kDa. The expected band size for ATG5 is at 32 kDa.

•

  IHC analysis of ATG5 using anti-ATG5 antibody (BA3525-2).
  ATG5 was detected in a paraffin-embedded section of human ovarian cancer tissue. The tissue section was incubated with rabbit anti-ATG5 Antibody (BA3525-2) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

•

  ICC/IF analysis of ATG5 using anti-ATG5 antibody (BA3525-2).
  ATG5 was detected in an immunocytochemical section of A549 cells. The section was incubated with rabbit anti-ATG5 Antibody (BA3525-2) at a dilution of 1:100. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

•

  Flow Cytometry analysis of HepG2 cells using anti-ATG5 antibody (BA3525-2).
  Overlay histogram showing HepG2 cells stained with BA3525-2 (Blue line). To facilitate intrMyelin basic protein/MBPllular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ATG5 Antibody (BA3525-2) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
