| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |

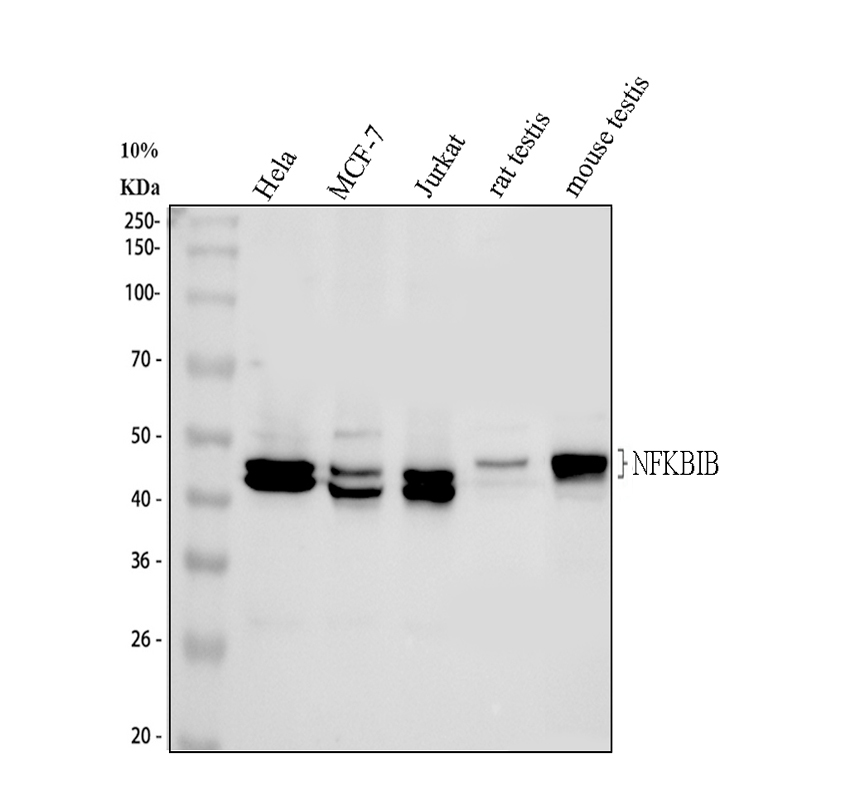

Western blot analysis of IkB Beta/NFKBIB using anti-IkB Beta/NFKBIB antibody (PB9292). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MCF-7 whole cell lysates,
Lane 3: human Jurkat whole cell lysates,
Lane 4: rat testis tissue lysates,
Lane 5: mouse testis tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IkB Beta/NFKBIB antigen affinity purified polyclonal antibody (PB9292) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IkB Beta/NFKBIB at approximately 45-48 kDa. The expected band size for IkB Beta/NFKBIB is at 38 kDa.

IHC analysis of IkB Beta/NFKBIB using anti-IkB Beta/NFKBIB antibody (PB9292).
IkB Beta/NFKBIB was detected in a paraffin-embedded section of human breast cancer tissue. The tissue section was incubated with rabbit anti-IkB Beta/NFKBIB Antibody (PB9292) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

Western blot analysis of IkB Beta/NFKBIB using anti-IkB Beta/NFKBIB antibody (PB9292). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human MCF-7 whole cell lysates,
Lane 3: human Jurkat whole cell lysates,
Lane 4: rat testis tissue lysates,
Lane 5: mouse testis tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IkB Beta/NFKBIB antigen affinity purified polyclonal antibody (PB9292) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IkB Beta/NFKBIB at approximately 45-48 kDa. The expected band size for IkB Beta/NFKBIB is at 38 kDa.

IHC analysis of IkB Beta/NFKBIB using anti-IkB Beta/NFKBIB antibody (PB9292).
IkB Beta/NFKBIB was detected in a paraffin-embedded section of human breast cancer tissue. The tissue section was incubated with rabbit anti-IkB Beta/NFKBIB Antibody (PB9292) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
