Western blot analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat lung tissue lysates,
Lane 2: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-RAGE/AGER antigen affinity purified monoclonal antibody (M03438-2) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for RAGE/AGER at approximately 45-58 kDa. The expected band size for RAGE/AGER is at 43 kDa.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of mouse lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.

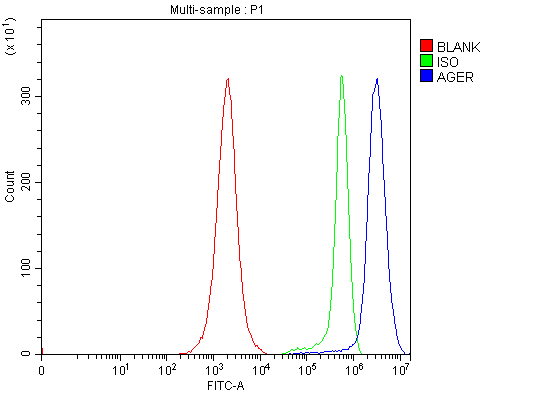

Flow Cytometry analysis of Jurkat cells using anti-RAGE/AGER antibody (M03438-2).
Overlay histogram showing Jurkat cells stained with M03438-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Western blot analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat lung tissue lysates,
Lane 2: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-RAGE/AGER antigen affinity purified monoclonal antibody (M03438-2) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for RAGE/AGER at approximately 45-58 kDa. The expected band size for RAGE/AGER is at 43 kDa.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of mouse lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
Flow Cytometry analysis of Jurkat cells using anti-RAGE/AGER antibody (M03438-2).
Overlay histogram showing Jurkat cells stained with M03438-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Western blot analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat lung tissue lysates,
Lane 2: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-RAGE/AGER antigen affinity purified monoclonal antibody (M03438-2) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for RAGE/AGER at approximately 45-58 kDa. The expected band size for RAGE/AGER is at 43 kDa.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of mouse lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of RAGE/AGER using anti-RAGE/AGER antibody (M03438-2).
RAGE/AGER was detected in a paraffin-embedded section of rat lung tissue. The tissue section was incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at a dilution of 1:200 and developed using HRP Conjugated mouse IgG Super Vision Assay Kit (Catalog # SV0001) with DAB (Catalog # AR1027) as the chromogen.
Flow Cytometry analysis of Jurkat cells using anti-RAGE/AGER antibody (M03438-2).
Overlay histogram showing Jurkat cells stained with M03438-2 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-RAGE/AGER Antibody (M03438-2) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
