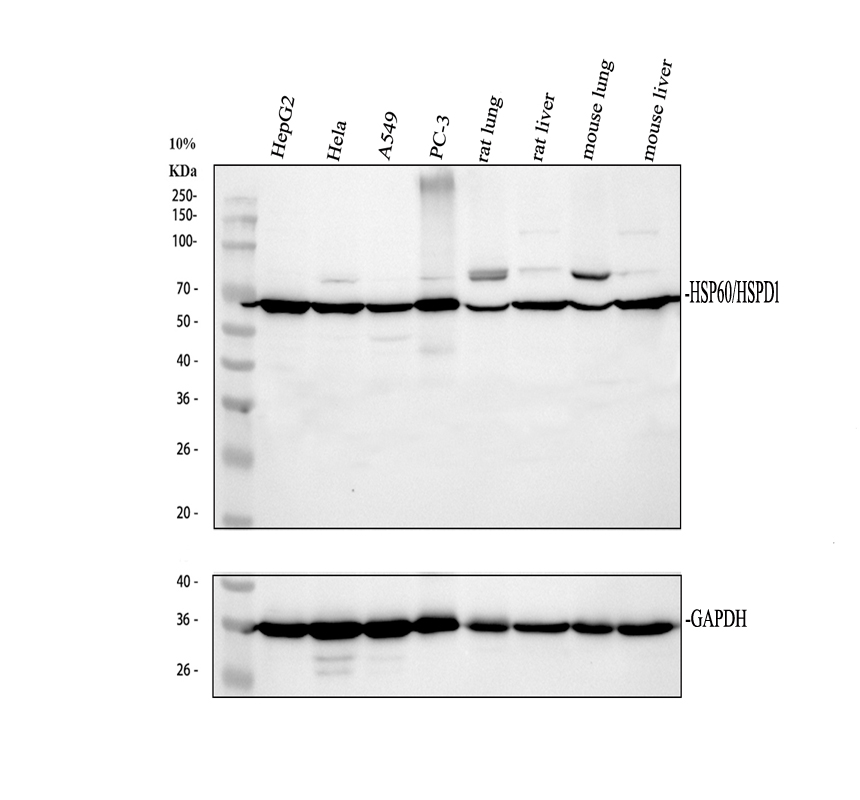

Figure 1. Western blot analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human PC-3 whole cell lysates,
Lane 5: rat lung tissue lysates,
Lane 6: rat liver tissue lysates,
Lane 7: mouse lung tissue lysates,
Lane 8: mouse liver tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-HSP60/HSPD1 antigen affinity purified polyclonal antibody (BA1511) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for HSP60/HSPD1 at approximately 61 kDa. The expected band size for HSP60/HSPD1 is at 61 kDa.
Figure 2. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in a paraffin-embedded section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 3. ICC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of SMMC cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 4. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in frozen section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 5. IF analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. DyLight®488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

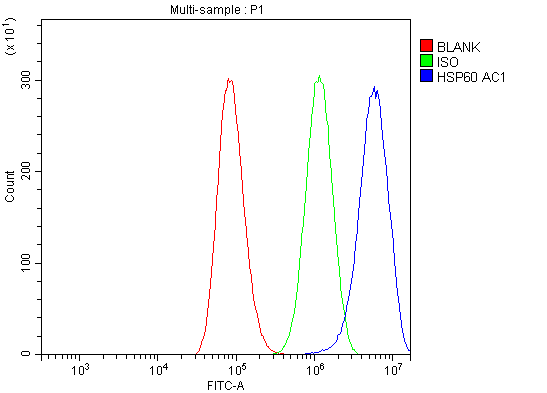

Figure 6. Flow Cytometry analysis of A549 cells using anti-HSP60/HSPD1 antibody (BA1511).
Overlay histogram showing A549 cells stained with BA1511 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Figure 1. Western blot analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human PC-3 whole cell lysates,
Lane 5: rat lung tissue lysates,
Lane 6: rat liver tissue lysates,
Lane 7: mouse lung tissue lysates,
Lane 8: mouse liver tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-HSP60/HSPD1 antigen affinity purified polyclonal antibody (BA1511) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for HSP60/HSPD1 at approximately 61 kDa. The expected band size for HSP60/HSPD1 is at 61 kDa.
Figure 2. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in a paraffin-embedded section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 3. ICC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of SMMC cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 4. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in frozen section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 5. IF analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. DyLight®488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Figure 6. Flow Cytometry analysis of A549 cells using anti-HSP60/HSPD1 antibody (BA1511).
Overlay histogram showing A549 cells stained with BA1511 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Figure 1. Western blot analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HepG2 whole cell lysates,
Lane 2: human Hela whole cell lysates,
Lane 3: human A549 whole cell lysates,
Lane 4: human PC-3 whole cell lysates,
Lane 5: rat lung tissue lysates,
Lane 6: rat liver tissue lysates,
Lane 7: mouse lung tissue lysates,
Lane 8: mouse liver tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-HSP60/HSPD1 antigen affinity purified polyclonal antibody (BA1511) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for HSP60/HSPD1 at approximately 61 kDa. The expected band size for HSP60/HSPD1 is at 61 kDa.
Figure 2. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in a paraffin-embedded section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 3. ICC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of SMMC cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The section was developed using Strepavidin-Biotin-Complex (SABC)(Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 4. IHC analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in frozen section of rat intestine tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1022) as the chromogen.
Figure 5. IF analysis of HSP60/HSPD1 using anti-HSP60/HSPD1 antibody (BA1511).
HSP60/HSPD1 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at a dilution of 1:100. DyLight®488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Figure 6. Flow Cytometry analysis of A549 cells using anti-HSP60/HSPD1 antibody (BA1511).
Overlay histogram showing A549 cells stained with BA1511 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-HSP60/HSPD1 Antibody (BA1511) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
