Western blot (WB): | 1:500-2000 |
Immunohistochemistry (IHC): | 1:50-400 |
Immunofluorescence (IF): | 1:50-400 |
Flow Cytometry (Fixed): | 1:50-200 |
(Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. |
Western blot analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: human Raji whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-CD45/PTPRC antigen affinity purified polyclonal antibody (PB9785) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for CD45/PTPRC at approximately 180-250 kDa. The expected band size for CD45/PTPRC is at 147 kDa.
IHC analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785) .
CD45/PTPRC was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785).
CD45/PTPRC was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at a dilution of 1:100. Dylight488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog#BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

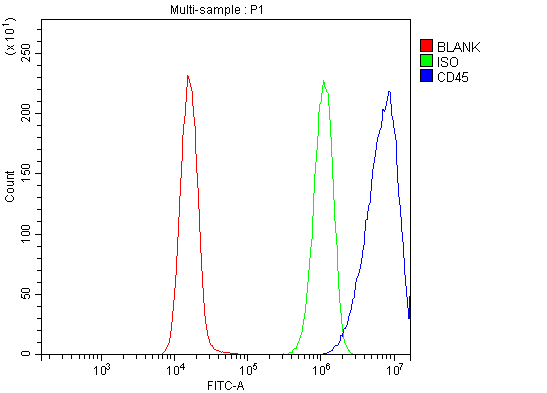

Flow Cytometry analysis of Jurkat cells using anti-CD45/PTPRC antibody (PB9785).
Overlay histogram showing Jurkat cells stained with PB9785 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Western blot analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Jurkat whole cell lysates,
Lane 2: human Raji whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-CD45/PTPRC antigen affinity purified polyclonal antibody (PB9785) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for CD45/PTPRC at approximately 180-250 kDa. The expected band size for CD45/PTPRC is at 147 kDa.
IHC analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785) .
CD45/PTPRC was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of CD45/PTPRC using anti-CD45/PTPRC antibody (PB9785).
CD45/PTPRC was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at a dilution of 1:100. Dylight488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog#BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of Jurkat cells using anti-CD45/PTPRC antibody (PB9785).
Overlay histogram showing Jurkat cells stained with PB9785 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with rabbit anti-CD45/PTPRC Antibody (PB9785) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample (Red line) was also used as a control.
