Western blot (WB): | 1:500-2000 |
Immunohistochemistry (IHC): | 1:50-400 |
Flow Cytometry (Fixed): | 1:50-200 |
(Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. |

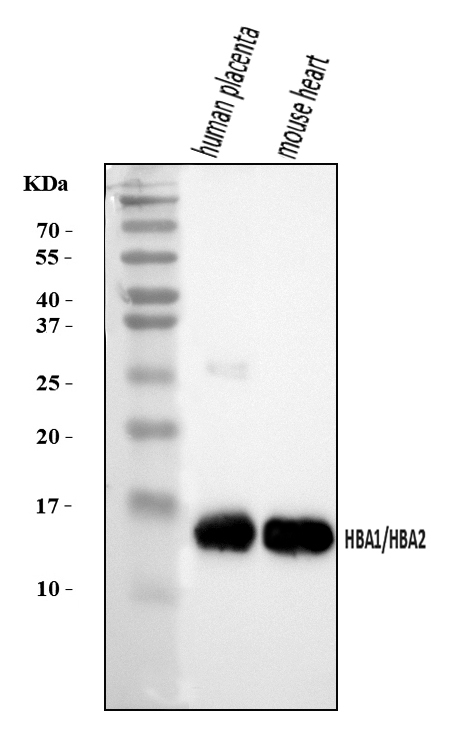

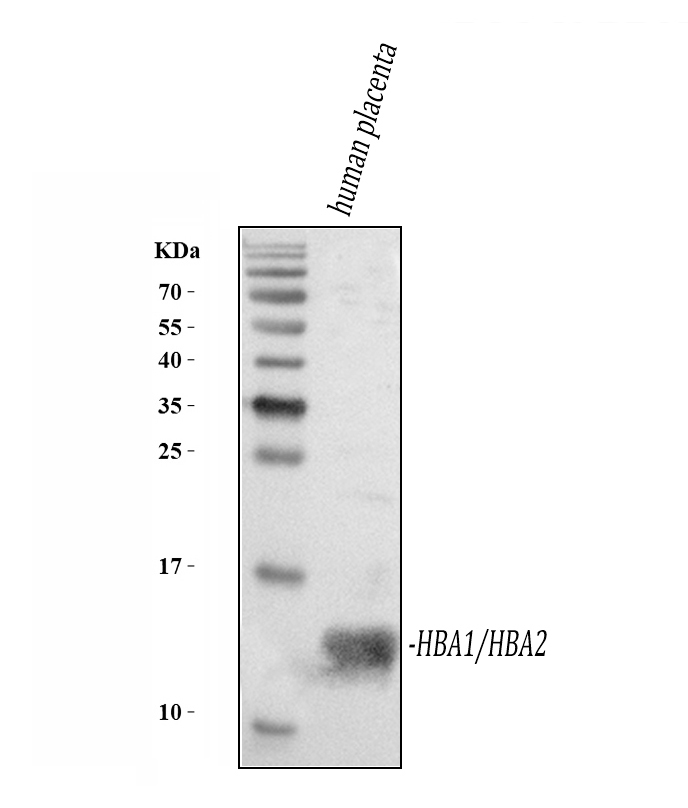

Western blot analysis of anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human placenta whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Hemoglobin/HBA1/HBA2 antigen affinity purified polyclonal antibody (A00233-1) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Hemoglobin/HBA1/HBA2 at approximately 15 kDa. The expected band size for Hemoglobin/HBA1/HBA2 is at 15 kDa.
IHC analysis of Hemoglobin/HBA1/HBA2 using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Hemoglobin/HBA1/HBA2 was detected in a paraffin-embedded section of human placenta tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of Hemoglobin/HBA1/HBA2 using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Hemoglobin/HBA1/HBA2 was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

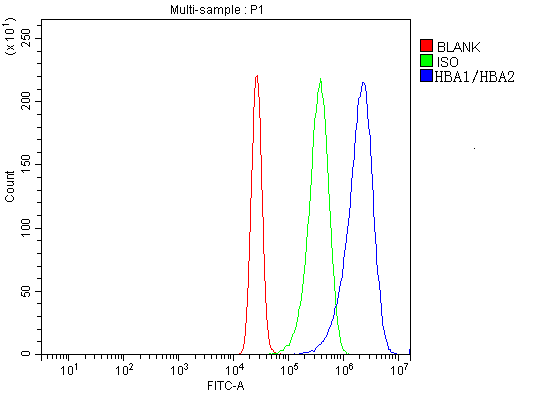

Flow Cytometry analysis of K562 cells using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Overlay histogram showing K562 cells stained with A00233-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Hemoglobin/HBA1/HBA2 Antibody (A00233-1, 1:100). DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 1:100) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG (Catalog # BA1045) (1:100) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
Western blot analysis of anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human placenta whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Hemoglobin/HBA1/HBA2 antigen affinity purified polyclonal antibody (A00233-1) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Hemoglobin/HBA1/HBA2 at approximately 15 kDa. The expected band size for Hemoglobin/HBA1/HBA2 is at 15 kDa.
IHC analysis of Hemoglobin/HBA1/HBA2 using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Hemoglobin/HBA1/HBA2 was detected in a paraffin-embedded section of human placenta tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of Hemoglobin/HBA1/HBA2 using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Hemoglobin/HBA1/HBA2 was detected in a paraffin-embedded section of human tonsil tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
Flow Cytometry analysis of K562 cells using anti-Hemoglobin/HBA1/HBA2 antibody (A00233-1).
Overlay histogram showing K562 cells stained with A00233-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-Hemoglobin/HBA1/HBA2 Antibody (A00233-1, 1:100). DyLight®488 conjugated goat anti-rabbit IgG (BA1127, 1:100) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG (Catalog # BA1045) (1:100) used under the same conditions. Unlabelled sample (Red line) was also used as a control.
