| Western blot (WB): | 1:500-2000 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-200 |

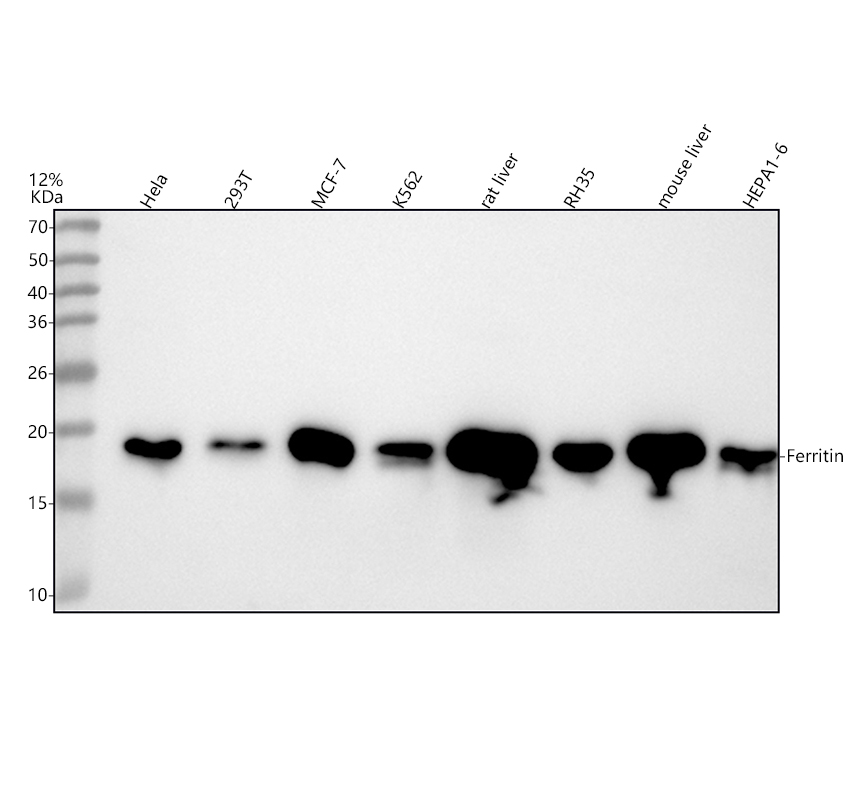

Western blot analysis of anti-Ferritin antibody (BM4487). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human 293T whole cell lysates,
Lane 3: human MCF-7 whole cell lysates,
Lane 4: human K562 whole cell lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat RH-35 whole cell lysates,
Lane 7: mouse heart tissue lysates,
Lane 8: mouse Hepa1-6 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Ferritin antigen affinity purified monoclonal antibody (BM4487) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Ferritin at approximately 19 kDa. The expected band size for Ferritin is at 21 kDa.

Immunofluorescent analysis using the Antibody.

Immunofluorescent analysis of Jurkat cells, using Ferritin Antibody.

Western blot analysis of anti-Ferritin antibody (BM4487). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human 293T whole cell lysates,
Lane 3: human MCF-7 whole cell lysates,
Lane 4: human K562 whole cell lysates,
Lane 5: rat liver tissue lysates,
Lane 6: rat RH-35 whole cell lysates,
Lane 7: mouse heart tissue lysates,
Lane 8: mouse Hepa1-6 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Ferritin antigen affinity purified monoclonal antibody (BM4487) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Ferritin at approximately 19 kDa. The expected band size for Ferritin is at 21 kDa.

Immunofluorescent analysis using the Antibody.

Immunofluorescent analysis of Jurkat cells, using Ferritin Antibody.
