Western blot analysis of PDIA6 using anti-PDIA6 antibody (M03813-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: K562 whole cell lysates,
Lane 2: HepG2 whole cell lysates,
Lane 3: HT1080 whole cell lysates,
Lane 4: COS-7 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-PDIA6 antigen affinity purified monoclonal antibody (M03813-1) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for PDIA6 at approximately 48 kDa. The expected band size for PDIA6 is at 48 kDa.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Bladder epithelial carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human breast infiltrating ductal carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Colorectal adenocarcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human endometrial cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Laryngeal squamous cell carcinomas tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human liver cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in an immunocytochemical section of HepG2 cells. The section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:100. Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog#BA1126) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

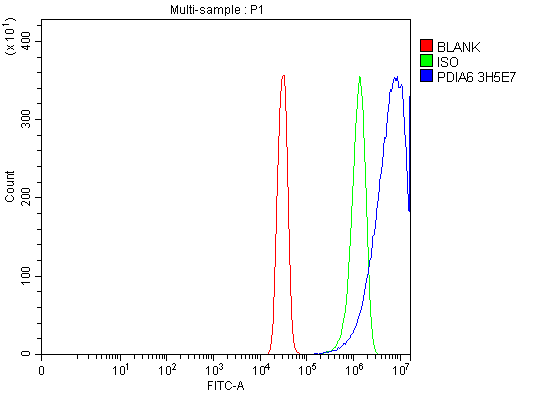

Flow Cytometry analysis of SiHa cells using anti-PDIA6 antibody (M03813-1).
Overlay histogram showing SiHa cells stained with M03813-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-PDIA6 Antibody (M03813-1) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Western blot analysis of PDIA6 using anti-PDIA6 antibody (M03813-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: K562 whole cell lysates,
Lane 2: HepG2 whole cell lysates,
Lane 3: HT1080 whole cell lysates,
Lane 4: COS-7 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-PDIA6 antigen affinity purified monoclonal antibody (M03813-1) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for PDIA6 at approximately 48 kDa. The expected band size for PDIA6 is at 48 kDa.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Bladder epithelial carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human breast infiltrating ductal carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Colorectal adenocarcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human endometrial cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Laryngeal squamous cell carcinomas tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human liver cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in an immunocytochemical section of HepG2 cells. The section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:100. Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog#BA1126) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of SiHa cells using anti-PDIA6 antibody (M03813-1).
Overlay histogram showing SiHa cells stained with M03813-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-PDIA6 Antibody (M03813-1) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Western blot analysis of PDIA6 using anti-PDIA6 antibody (M03813-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: K562 whole cell lysates,
Lane 2: HepG2 whole cell lysates,
Lane 3: HT1080 whole cell lysates,
Lane 4: COS-7 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-PDIA6 antigen affinity purified monoclonal antibody (M03813-1) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for PDIA6 at approximately 48 kDa. The expected band size for PDIA6 is at 48 kDa.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Bladder epithelial carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human breast infiltrating ductal carcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Colorectal adenocarcinoma tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human endometrial cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human Laryngeal squamous cell carcinomas tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human liver cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in a paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of PDIA6 using anti-PDIA6 antibody (M03813-1).
PDIA6 was detected in an immunocytochemical section of HepG2 cells. The section was incubated with mouse anti-PDIA6 Antibody (M03813-1) at a dilution of 1:100. Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog#BA1126) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of SiHa cells using anti-PDIA6 antibody (M03813-1).
Overlay histogram showing SiHa cells stained with M03813-1 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with mouse anti-PDIA6 Antibody (M03813-1) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
