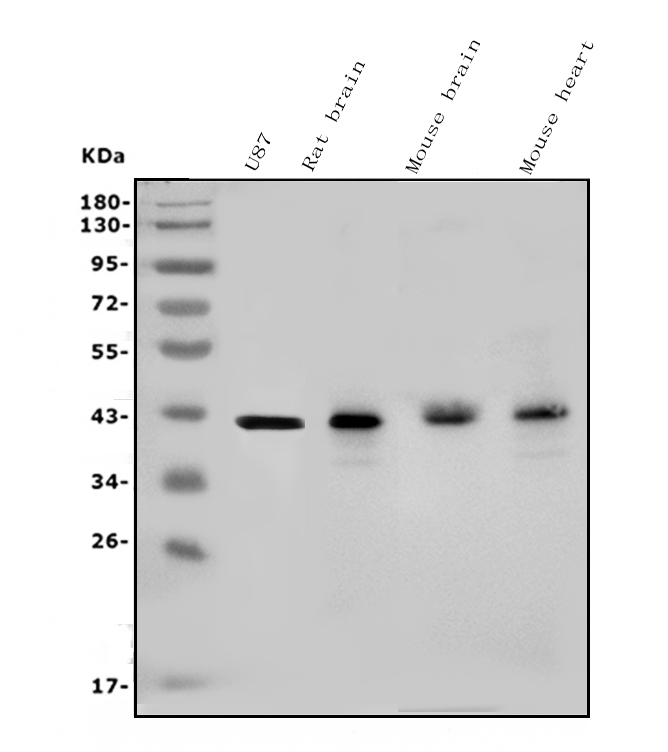

Western blot analysis of Connexin 43/GJA1 using anti-Connexin 43/GJA1 antibody (A00599). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human U-87MG whole cell lysates,
Lane 2: rat brain tissue lysates,
Lane 3: mouse brain tissue lysates,
Lane 4: mouse heart tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Connexin 43/GJA1 antigen affinity purified polyclonal antibody (A00599) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Connexin 43/GJA1 at approximately 43 kDa. The expected band size for Connexin 43/GJA1 is at 43 kDa.

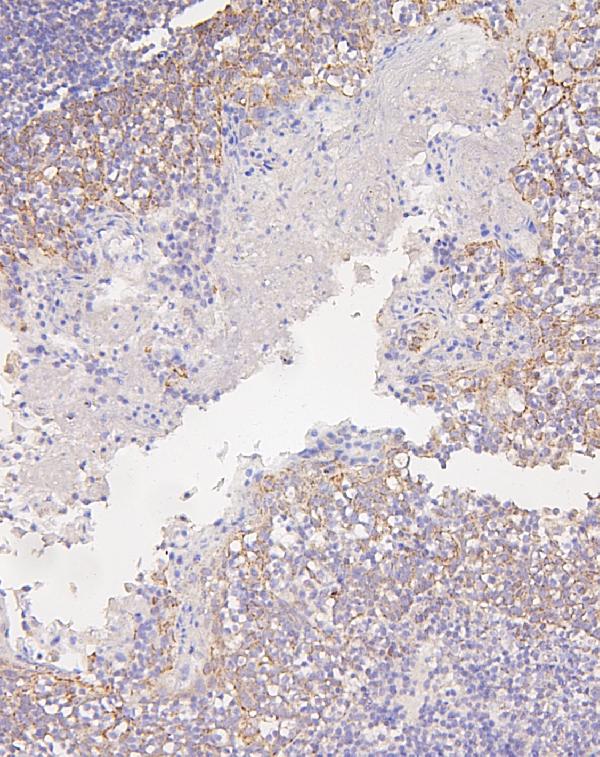

IHC analysis of Connexin 43/GJA1 using anti-Connexin 43/GJA1 antibody (A00599).
Connexin 43/GJA1 was detected in a paraffin-embedded section of human tonsil tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-Connexin 43/GJA1 Antibody (A00599) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.

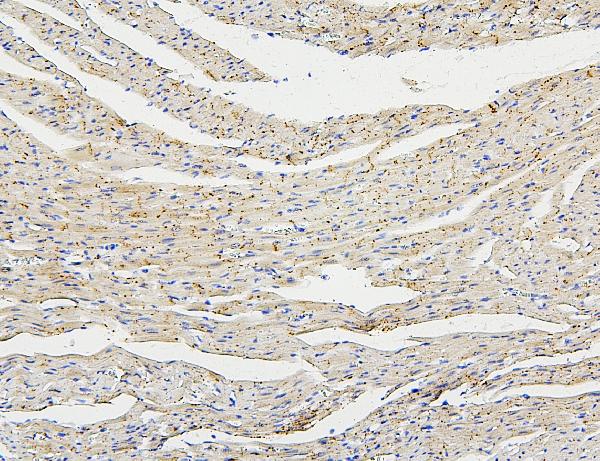

IHC analysis of Connexin 43/GJA1 using anti-Connexin 43/GJA1 antibody (A00599).
Connexin 43/GJA1 was detected in a paraffin-embedded section of mouse cardiac muscle tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-Connexin 43/GJA1 Antibody (A00599) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.

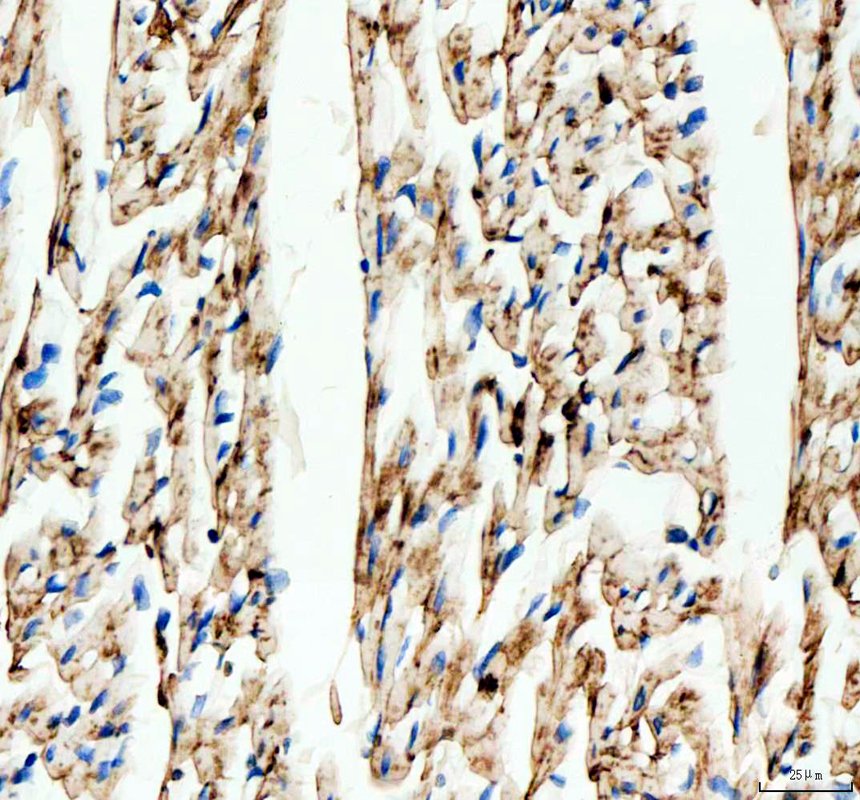

IHC analysis of Connexin 43/GJA1 using anti-Connexin 43/GJA1 antibody (A00599).
Connexin 43/GJA1 was detected in a paraffin-embedded section of rat cardiac muscle tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-Connexin 43/GJA1 Antibody (A00599) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.

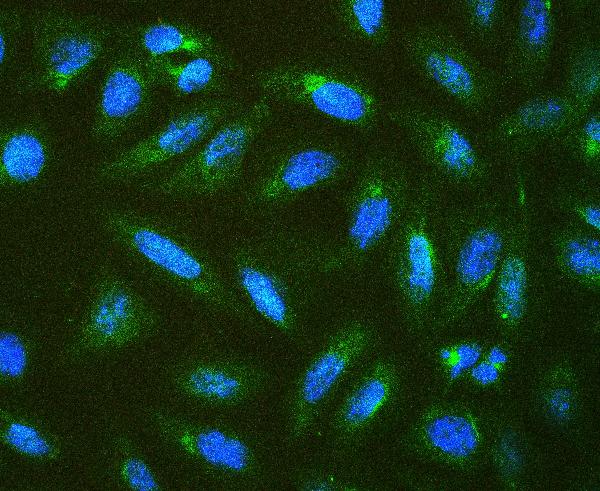

IF analysis of GJA1 using anti- GJA1 antibody (A00599).
GJA1 was detected in immunocytochemical section of U2OS cell. Enzyme antigen retrieval was performed using IHC enzyme antigen retrieval reagent (AR0022) DyLight488 Conjugated Goat Anti-Rabbit IgG (BA1127) was used as secondary antibody The section was counterstained with DAPI. Visualize using a fluorescence microscope and filter sets appropriate for the label used.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Enzyme linked immunosorbent assay (ELISA): | 1:100-1000 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
