| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Enzyme linked immunosorbent assay (ELISA): | 1:100-1000 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |

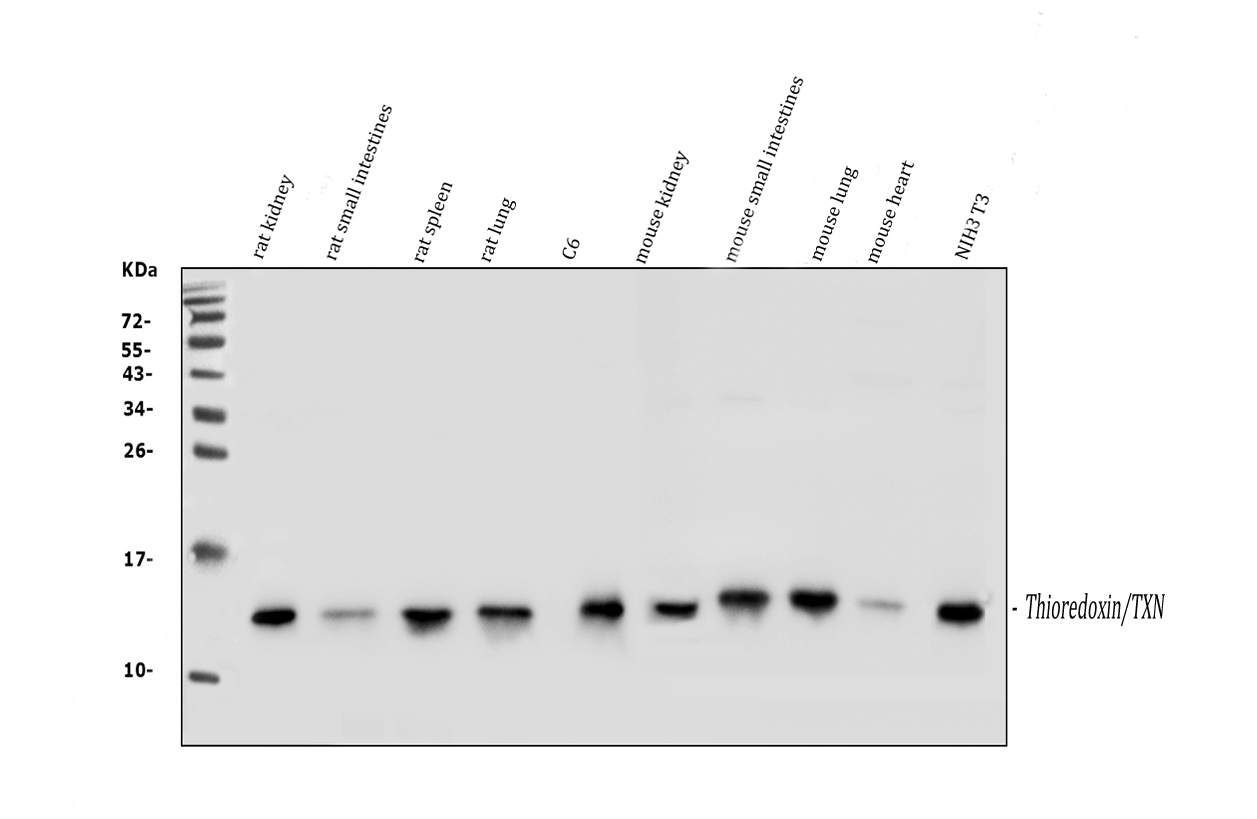

Western blot analysis of anti-Thioredoxin TRX antibody (A01219-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat kidney tissue lysates,
Lane 2: rat small intestine tissue lysates,
Lane 3: rat spleen tissue lysates,
Lane 4: rat lung tissue lysates,
Lane 5: rat C6 whole cell lysates,
Lane 6: mouse kidney tissue lysates,
Lane 7: mouse small intestine tissue lysates,
Lane 8: mouse lung tissue lysates,
Lane 9: mouse heart tissue lysates,
Lane 10: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Thioredoxin TRX antigen affinity purified polyclonal antibody (A01219-1) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Thioredoxin TRX at approximately 12 kDa. The expected band size for Thioredoxin TRX is at 12 kDa.

IHC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in a paraffin-embedded section of mouse small intestine tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in a paraffin-embedded section of rat spleen tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in an immunocytochemical section of LLC cells. The section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC/IF analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in an immunocytochemical section of NIH/3T3 cells. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

Western blot analysis of anti-Thioredoxin TRX antibody (A01219-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat kidney tissue lysates,
Lane 2: rat small intestine tissue lysates,
Lane 3: rat spleen tissue lysates,
Lane 4: rat lung tissue lysates,
Lane 5: rat C6 whole cell lysates,
Lane 6: mouse kidney tissue lysates,
Lane 7: mouse small intestine tissue lysates,
Lane 8: mouse lung tissue lysates,
Lane 9: mouse heart tissue lysates,
Lane 10: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-Thioredoxin TRX antigen affinity purified polyclonal antibody (A01219-1) and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Thioredoxin TRX at approximately 12 kDa. The expected band size for Thioredoxin TRX is at 12 kDa.

IHC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in a paraffin-embedded section of mouse small intestine tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in a paraffin-embedded section of rat spleen tissue. The tissue section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in an immunocytochemical section of LLC cells. The section was developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC/IF analysis of Thioredoxin TRX using anti-Thioredoxin TRX antibody (A01219-1).
Thioredoxin TRX was detected in an immunocytochemical section of NIH/3T3 cells. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
