Anti-Band 3/AE1/SLC4A1 Antibody (Clone#5G2G7)

Mouse monoclonal antibody

说明书一键复制产品信息

筛选器： All WB IHC FCM

M01146-1

50μl ￥1280 100μl ￥2180 150μl ￥2800
货期：现货

加入购物车立即购买

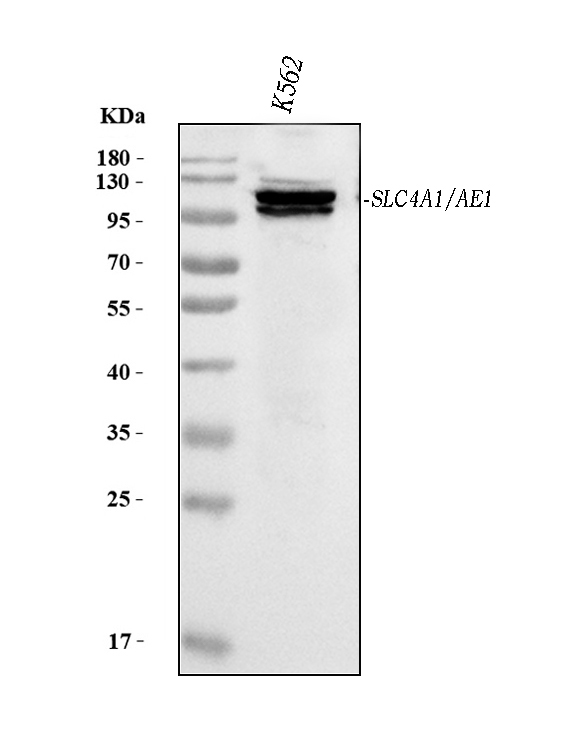

Western blot analysis of Band 3/AE1/SLC4A1 using anti-Band 3/AE1/SLC4A1 antibody (M01146-1). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: K562 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with mouse anti-Band 3/AE1/SLC4A1 antigen affinity purified monoclonal antibody (M01146-1) at a dilution of 1:1000 and probed with a goat anti-mouse IgG-HRP secondary antibody (Catalog # BA1050). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for Band 3/AE1/SLC4A1 at approximately 102 kDa. The expected band size for Band 3/AE1/SLC4A1 is at 102 kDa.
all(3)

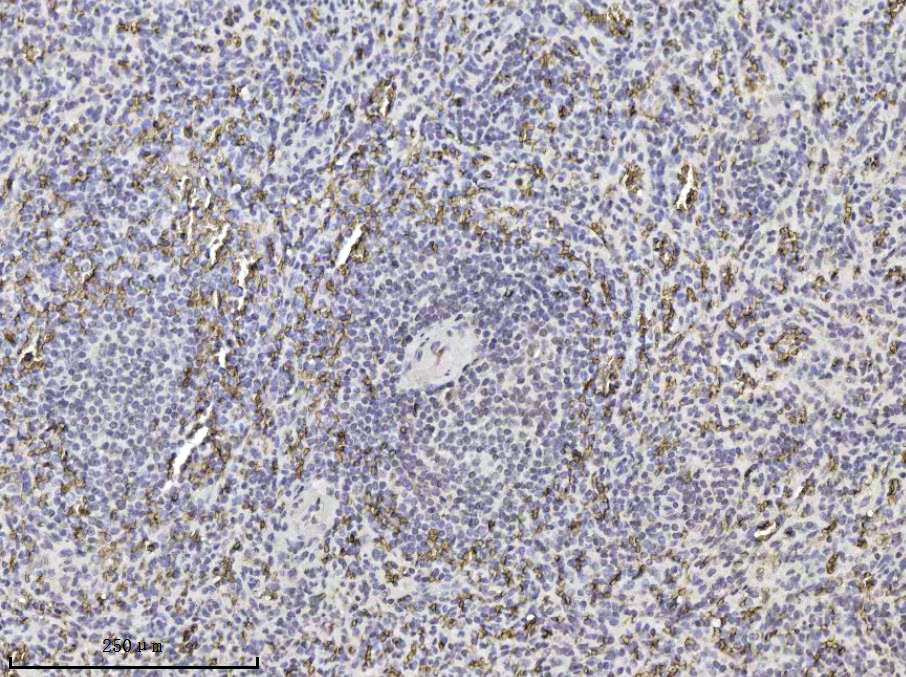

IHC analysis of Band 3/AE1/SLC4A1 using anti-Band 3/AE1/SLC4A1 antibody (M01146-1).
Band 3/AE1/SLC4A1 was detected in a paraffin-embedded section of human spleen tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was incubated with mouse anti-Band 3/AE1/SLC4A1 Antibody (M01146-1) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB (Catalog # AR1027) as the chromogen.
all(3)

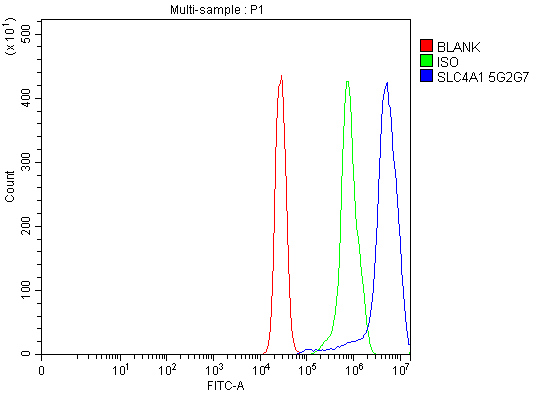

Flow Cytometry analysis of HepG2 cells using anti-Band 3/AE1/SLC4A1 antibody (M01146-1).
Overlay histogram showing HepG2 cells stained with M01146-1 (Blue line). The cells were fixed with 4% paraformaldehyde and blocked with 10% normal goat serum. And then incubated with mouse anti-Band 3/AE1/SLC4A1 Antibody (M01146-1) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-mouse IgG (BA1126) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was mouse IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
all(3)

产品简介 实验方案 引用文献 相关产品

产品简介>

产品名称

Anti-Band 3/AE1/SLC4A1 Antibody (Clone#5G2G7)

规格/价格

50μl/1280 100μl/2180 150μl/2800

指标别称

AE 1; AE1; Anion exchange protein 1; Anion exchanger 1; band 3; Band 3 anion transport protein; band 3/ AE1; CD233; SLC4A1

产品类型

Monoclonal

检验物种

human

应用范围

WB, IHC, FCM

基因名称

SLC4A1

克隆号

5G2G7

宿主

Mouse

抗体亚型

IgG2b

免疫原

E.coli-derived human Band 3 (Position: E28-N365). Human Band 3 shares 75.7% and 74.5% amino acid (aa) sequence identity with mouse and rat Band 3, respectively.

计算分子量

102 kDa

实际分子量

102 kDa

成分

500 ug/ml antibody with PBS, 0.02% NaN3, 1 mg/ml BSA and 50% glycerol.

纯化方式

protein G/A purified

浓度

500 ug/ml

产品形态

Liquid

保存条件

12 months from date of receipt，-20℃ as supplied.

背景资料

Band 3 is also known as SLC4A1. The protein encoded by this gene is part of the anion exchanger (AE) family and is expressed in the erythrocyte plasma membrane, where it functions as a chloride/bicarbonate exchanger involved in carbon dioxide transport from tissues to lungs. The protein comprises two domains that are structurally and functionally distinct. The N-terminal 40kDa domain is located in the cytoplasm and acts as an attachment site for the red cell skeleton by binding ankyrin. The glycosylated C-terminal membrane-associated domain contains 12-14 membrane spanning segments and carries out the stilbene disulphonate-sensitive exchange transport of anions. The cytoplasmic tail at the extreme C-terminus of the membrane domain binds carbonic anhydrase II. The encoded protein associates with the red cell membrane protein glycophorin A and this association promotes the correct folding and translocation of the exchanger. This protein is predominantly dimeric but forms tetramers in the presence of ankyrin. Many mutations in this gene are known in man, and these mutations can lead to two types of disease: destabilization of red cell membrane leading to hereditary spherocytosis, and defective kidney acid secretion leading to distal renal tubular acidosis. Other mutations that do not give rise to disease result in novel blood group antigens, which form the Diego blood group system.

Uniprot ID

P02730

文献引用格式

Band 3/AE1/SLC4A1 Antibody (Clone#5G2G7) (Boster Biological Technology, Wuhan, China. Catalog#M01146-1)

应用释义

WB-蛋白质免疫印迹法; IHC- 免疫组织化学法; ICC/IF-免疫细胞荧光和免疫细胞化学; FCM-流式细胞术; ELISA-酶联免疫吸附测定; IP-免疫沉淀法; IF-免疫组织荧光法; ChIP-染色质免疫沉淀法;

基因名全称

solute carrier family 4 (anion exchanger), member 1 (Diego blood group)

蛋白名全称

Band 3 anion transport protein
