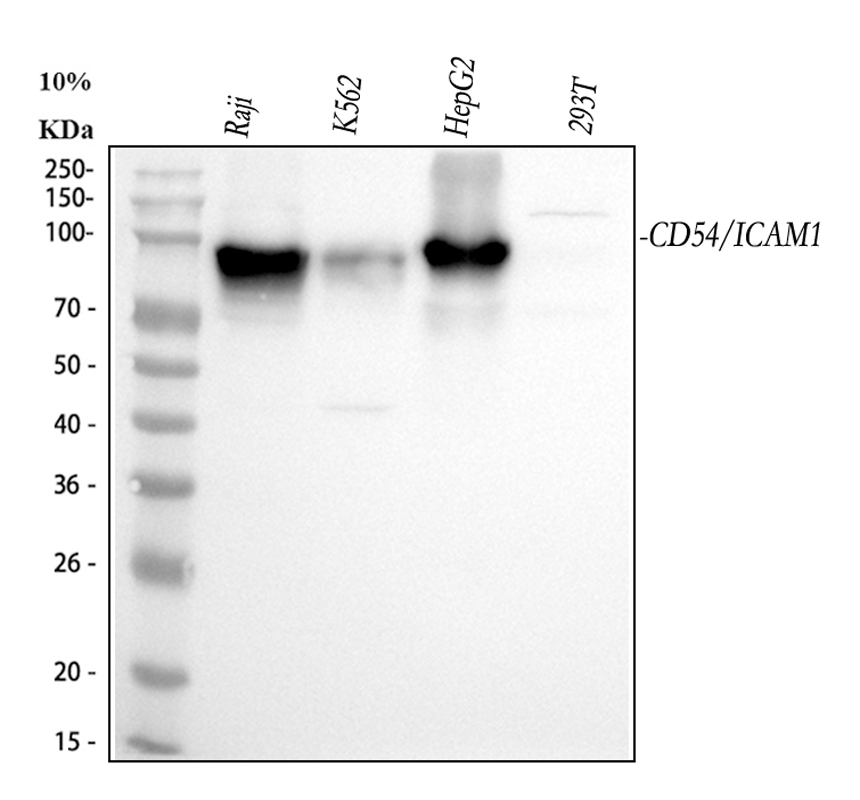

Western blot analysis of ICAM1 using anti-ICAM1 antibody (A00171). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Raji whole cell lysates,
Lane 2: human K562 whole cell lysates,
Lane 3: human HepG2 whole cell lysates,
Lane 4: human 293T whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ICAM1 antigen affinity purified polyclonal antibody (A00171) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ICAM1 at approximately 90-110 kDa. The expected band size for ICAM1 is at 59 kDa.

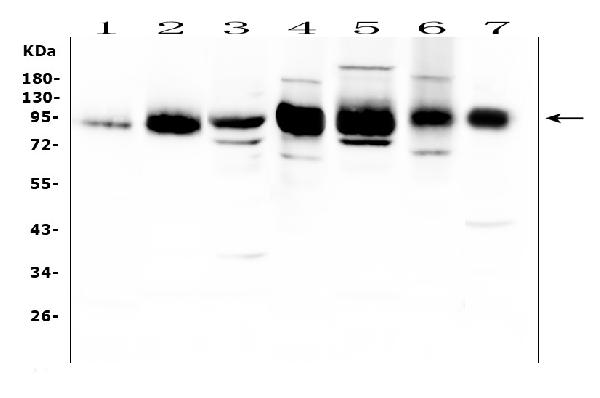

Western blot analysis of ICAM1 using anti-ICAM1 antibody (A00171). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: rat spleen tissue lysates,
Lane 2: rat thymus tissue lysates,
Lane 3: rat RH35 whole cell lysates,
Lane 4: mouse spleen tissue lysates,
Lane 5: mouse thymus tissue lysates,
Lane 6: mouse HEPA1-6 whole cell lysates,
Lane 7: mouse heart tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-ICAM1 antigen affinity purified polyclonal antibody (A00171) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for ICAM1 at approximately 90-110 kDa. The expected band size for ICAM1 is at 59 kDa.
IHC analysis of ICAM1 using anti-ICAM1 antibody (A00171) .
ICAM1 was detected in a paraffin-embedded section of human bladder urothelial carcinoma tissue. The tissue section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ICAM1 using anti-ICAM1 antibody (A00171) .
ICAM1 was detected in a paraffin-embedded section of human colorectal adenocarcinoma tissue. The tissue section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ICAM1 using anti-ICAM1 antibody (A00171) .
ICAM1 was detected in a paraffin-embedded section of human lung cancer tissue. The tissue section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ICAM1 using anti-ICAM1 antibody (A00171) .
ICAM1 was detected in a paraffin-embedded section of human placenta tissue. The tissue section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IHC analysis of ICAM1 using anti-ICAM1 antibody (A00171) .
ICAM1 was detected in a paraffin-embedded section of human spleen tissue. The tissue section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
IF analysis of ICAM1 using anti-ICAM1 antibody (A00171).
ICAM1 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-ICAM1 Antibody (A00171) at a dilution of 1:100. DyLight®488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

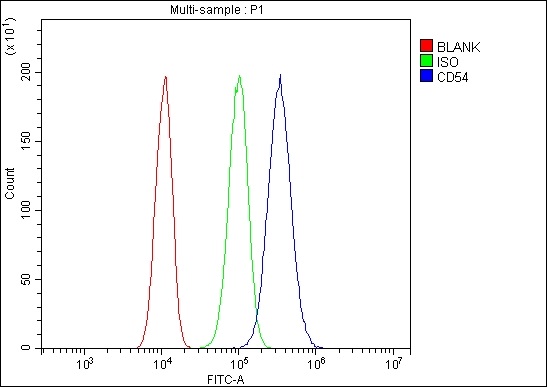

Flow Cytometry analysis of PC-3 cells using anti-ICAM1 antibody (A00171).
Overlay histogram showing PC-3 cells stained with A00171 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-ICAM1 Antibody (A00171) at 1:100 dilution for 30 min at 20°C. DyLight®488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
