| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| ImmunoPrecipitation (IP): | 1:200-300 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |

Western blot analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human A549 whole cell lysates,
Lane 3: human Jurkat whole cell lysates,
Lane 4: human HepG2 whole cell lysates,
Lane 5: rat testis tissue lysates,
Lane 6: rat PC-12 whole cell lysates,
Lane 7: mouse testis tissue lysates,
Lane 8: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GRP75/HSPA9 antigen affinity purified polyclonal antibody (PB0668) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRP75/HSPA9 at approximately 74 kDa. The expected band size for GRP75/HSPA9 is at 74 kDa.

IHC analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) .
GRP75/HSPA9 was detected in a paraffin-embedded section of human intestinal cancer tissue. The tissue section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) .
GRP75/HSPA9 was detected in a paraffin-embedded section of human lung cancer tissue. The tissue section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC/IF analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668).
GRP75/HSPA9 was detected in an immunocytochemical section of A549 cells. The section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:100. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

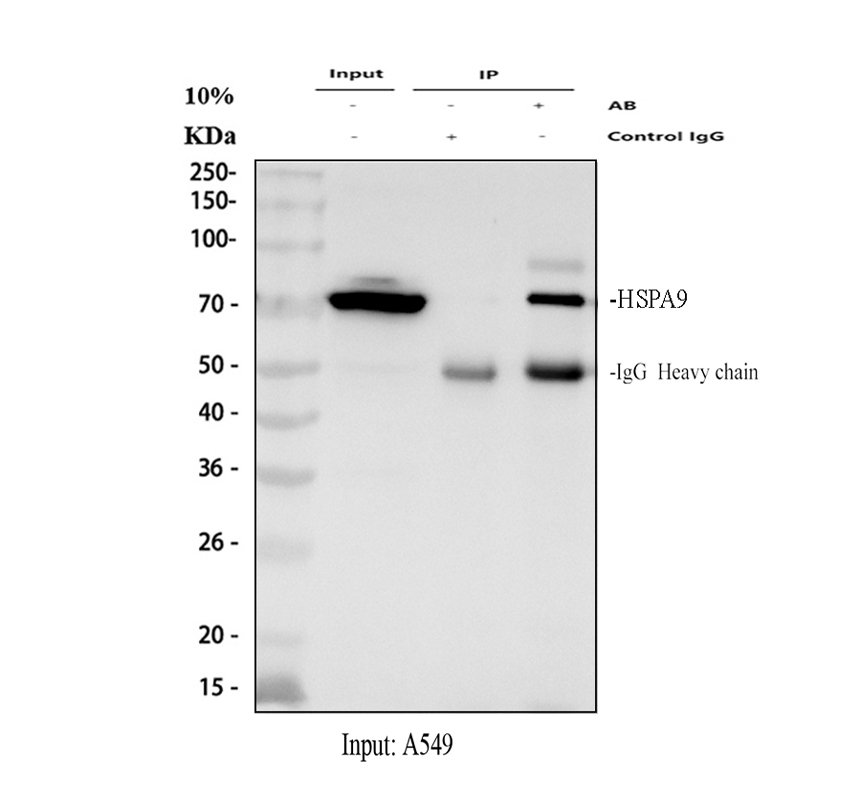

IP analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) in A549 whole cell lysate.
Western blot analysis of GRP75/HSPA9 using anti- GRP75/HSPA9 antibody (PB0668).
Lane 1: A549 whole cell lysates(30ug),
Lane 2: Rabbit control IgG instead of anti- GRP75/HSPA9 antibody in A549 whole cell lysate,
Lane 3: anti- GRP75/HSPA9 antibody (2μg) + A549 whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti- GRP75/HSPA9 antigen affinity purified polyclonal antibody (PB0668) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRP75/HSPA9 at approximately 74 kDa. The expected band size for GRP75/HSPA9 is at 74 kDa.

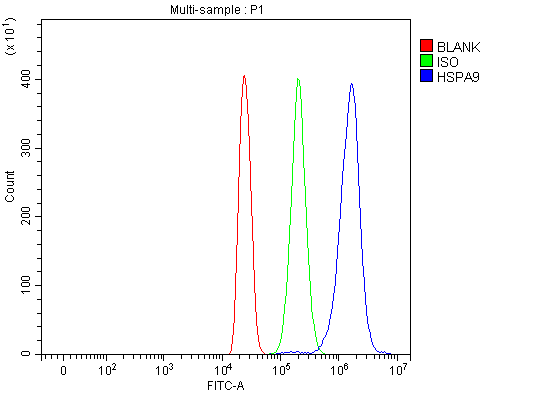

Flow Cytometry analysis of HL-60 cells using anti-GRP75/HSPA9 antibody (PB0668).
Overlay histogram showing HL-60 cells stained with PB0668 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.

Western blot analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human Hela whole cell lysates,
Lane 2: human A549 whole cell lysates,
Lane 3: human Jurkat whole cell lysates,
Lane 4: human HepG2 whole cell lysates,
Lane 5: rat testis tissue lysates,
Lane 6: rat PC-12 whole cell lysates,
Lane 7: mouse testis tissue lysates,
Lane 8: mouse NIH/3T3 whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GRP75/HSPA9 antigen affinity purified polyclonal antibody (PB0668) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRP75/HSPA9 at approximately 74 kDa. The expected band size for GRP75/HSPA9 is at 74 kDa.

IHC analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) .
GRP75/HSPA9 was detected in a paraffin-embedded section of human intestinal cancer tissue. The tissue section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

IHC analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) .
GRP75/HSPA9 was detected in a paraffin-embedded section of human lung cancer tissue. The tissue section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

ICC/IF analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668).
GRP75/HSPA9 was detected in an immunocytochemical section of A549 cells. The section was incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at a dilution of 1:100. Fluoro488 Conjugated Goat Anti-Rabbit IgG (Green) (Catalog # BA1127) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

IP analysis of GRP75/HSPA9 using anti-GRP75/HSPA9 antibody (PB0668) in A549 whole cell lysate.
Western blot analysis of GRP75/HSPA9 using anti- GRP75/HSPA9 antibody (PB0668).
Lane 1: A549 whole cell lysates(30ug),
Lane 2: Rabbit control IgG instead of anti- GRP75/HSPA9 antibody in A549 whole cell lysate,
Lane 3: anti- GRP75/HSPA9 antibody (2μg) + A549 whole cell lysate (500μg).
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti- GRP75/HSPA9 antigen affinity purified polyclonal antibody (PB0668) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRP75/HSPA9 at approximately 74 kDa. The expected band size for GRP75/HSPA9 is at 74 kDa.

Flow Cytometry analysis of HL-60 cells using anti-GRP75/HSPA9 antibody (PB0668).
Overlay histogram showing HL-60 cells stained with PB0668 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-GRP75/HSPA9 Antibody (PB0668) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
