Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human A549- WT whole cell lysates,
Lane 2: human A549-IRF3 KO whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.

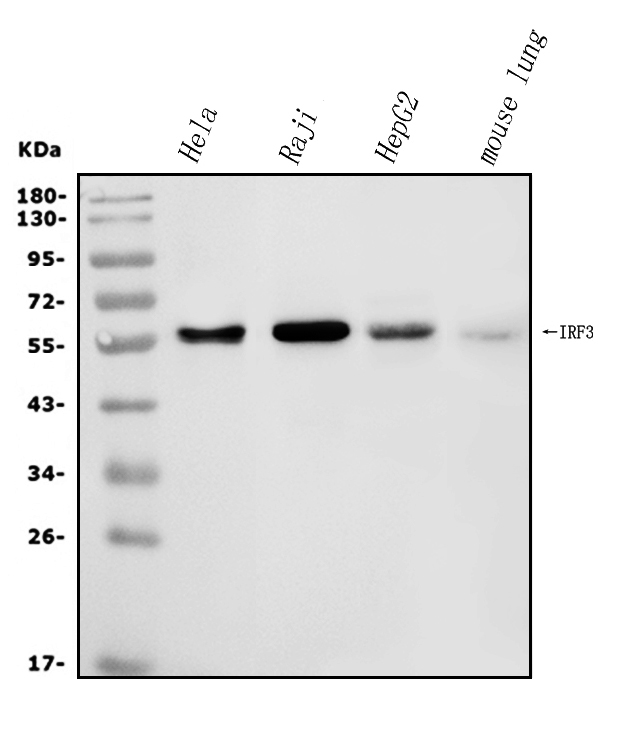

Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HELA whole cell lysates,
Lane 2: human Raji whole cell lysates,
Lane 3: human HEPG2 whole cell lysates,
Lane 4: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.
IHC analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in a paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:100. Fluoro594-conjugated Anti-rabbit IgG Secondary Antibody (red)(Catalog#BA1142) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).

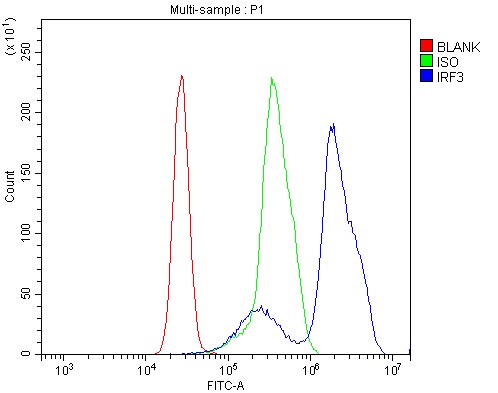

Flow Cytometry analysis of K562 cells using anti-IRF3 antibody (A00165-6).
Overlay histogram showing K562 cells stained with A00165-6 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-IRF3 Antibody (A00165-6) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| Enzyme linked immunosorbent assay (ELISA): | 1:100-1000 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human A549- WT whole cell lysates,
Lane 2: human A549-IRF3 KO whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.
Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HELA whole cell lysates,
Lane 2: human Raji whole cell lysates,
Lane 3: human HEPG2 whole cell lysates,
Lane 4: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.
IHC analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in a paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:100. Fluoro594-conjugated Anti-rabbit IgG Secondary Antibody (red)(Catalog#BA1142) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of K562 cells using anti-IRF3 antibody (A00165-6).
Overlay histogram showing K562 cells stained with A00165-6 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-IRF3 Antibody (A00165-6) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human A549- WT whole cell lysates,
Lane 2: human A549-IRF3 KO whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.
Western blot analysis of IRF3 using anti-IRF3 antibody (A00165-6). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: human HELA whole cell lysates,
Lane 2: human Raji whole cell lysates,
Lane 3: human HEPG2 whole cell lysates,
Lane 4: mouse lung tissue lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-IRF3 antigen affinity purified polyclonal antibody (A00165-6) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for IRF3 at approximately 50-55 kDa. The expected band size for IRF3 is at 47 kDa.
IHC analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in a paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:200 and developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB (Catalog # AR1027) as the chromogen.
ICC/IF analysis of IRF3 using anti-IRF3 antibody (A00165-6).
IRF3 was detected in an immunocytochemical section of A431 cells. The section was incubated with rabbit anti-IRF3 Antibody (A00165-6) at a dilution of 1:100. Fluoro594-conjugated Anti-rabbit IgG Secondary Antibody (red)(Catalog#BA1142) was used as secondary antibody. The section was counterstained with DAPI (Catalog # AR1176) (Blue).
Flow Cytometry analysis of K562 cells using anti-IRF3 antibody (A00165-6).
Overlay histogram showing K562 cells stained with A00165-6 (Blue line). To facilitate intracellular staining, cells were fixed with 4% paraformaldehyde and permeabilized with permeabilization buffer. The cells were blocked with 10% normal goat serum. And then incubated with rabbit anti-IRF3 Antibody (A00165-6) at 1:100 dilution for 30 min at 20°C. Fluoro488 conjugated goat anti-rabbit IgG (BA1127) was used as secondary antibody at 1:100 dilution for 30 minutes at 20°C. Isotype control antibody (Green line) was rabbit IgG at 1:100 dilution used under the same conditions. Unlabelled sample without incubation with primary antibody and secondary antibody (Red line) was used as a blank control.
